Backups

NetDefense can automatically back up each device’s full configuration to an S3-compatible storage provider. Backups are encrypted and run on a named schedule — the same scheduler used for syncs and run commands.

How Backups Work

Backup configuration has two levels:

1. Organization-level config — defines the S3 endpoint, bucket, credentials, the schedule that drives backup runs, and a master encryption key. This is set up once per organization.
2. Per-device toggle — each device can be individually enabled or disabled for backups. This lets you exclude lab or test devices from the backup schedule.

Encryption Keys

All backups are encrypted before upload. There are two key levels:

• Organization key (org) — the default encryption key shared across all devices in the organization. Set via ndcli backup encryption-key set.
• Device key (device) — an optional per-device override encryption key. When set, this device’s backups use its own key instead of the organization key.

Tip

Use per-device encryption keys for compliance zones that require separate key management — for example, when different teams are responsible for different segments of infrastructure and must maintain independent key custody.

Show Backup Config

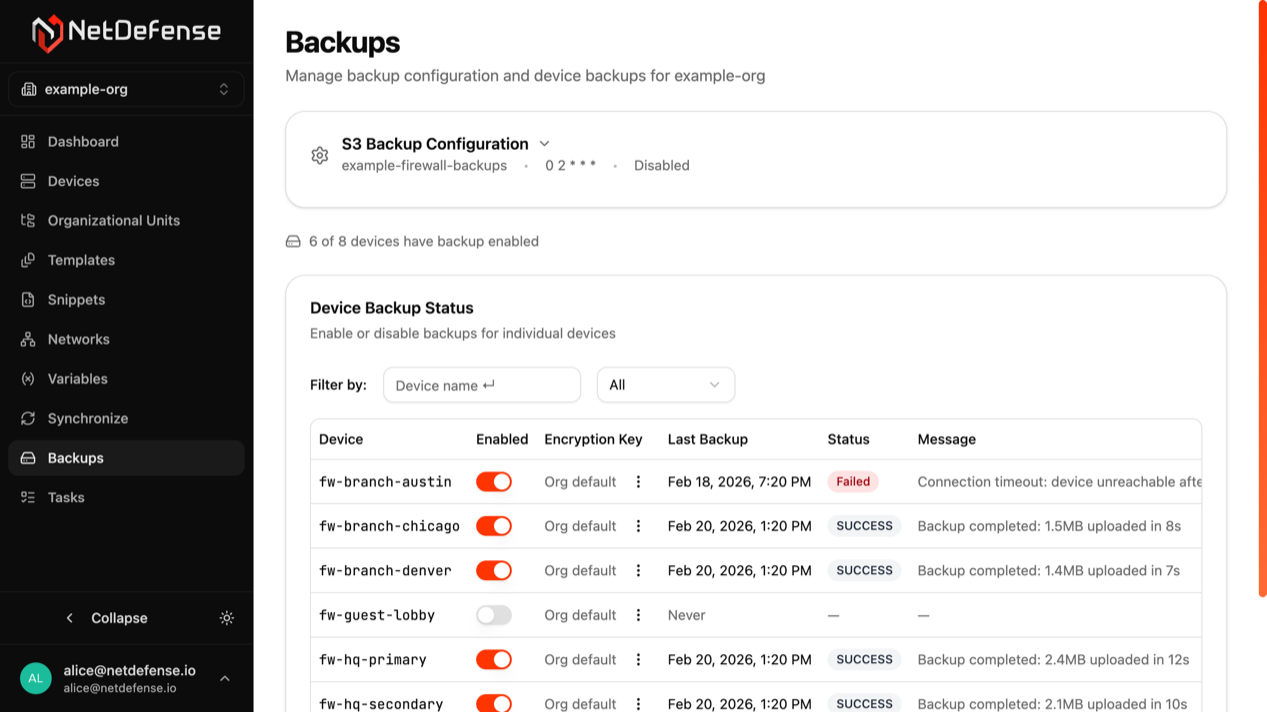

View in NDWeb

ndcli backup config show

Organization:   example-org
Status:         ○ DISABLED

S3 Endpoint:    https://s3.us-east-1.wasabisys.com
S3 Bucket:      example-firewall-backups
S3 Folder:      production
S3 Key ID:      AKIAIOSFODNN7EXAMPLE
Schedule:       nightly-maintenance
Encryption Key: ● Configured

Created:        2026-02-20 19:19:51
Updated:        2026-02-20 19:19:51

The Schedule field shows the name of the schedule driving backup runs. To change when backups run, update the schedule itself — or attach a different one with ndcli backup config set --schedule <name>.

View Backup Status

View in NDWeb

ndcli backup status

╭───────────────────┬──────────┬─────┬─────────────┬───────────╮
│ Device            │ Backup   │ Key │ Last Backup │ Status    │
├───────────────────┼──────────┼─────┼─────────────┼───────────┤
│ fw-branch-austin  │ Enabled  │ org │ 2d          │ ● FAILED  │
│ fw-branch-chicago │ Enabled  │ org │ 6h          │ ● SUCCESS │
│ fw-branch-denver  │ Enabled  │ org │ 6h          │ ● SUCCESS │
│ fw-guest-lobby    │ Disabled │ -   │ Never       │ -         │
│ fw-hq-primary     │ Enabled  │ org │ 6h          │ ● SUCCESS │
│ fw-hq-secondary   │ Enabled  │ org │ 6h          │ ● SUCCESS │
│ fw-lab-bench      │ Disabled │ -   │ Never       │ -         │
│ fw-staging-01     │ Enabled  │ org │ 1d          │ ● SUCCESS │
╰───────────────────┴──────────┴─────┴─────────────┴───────────╯

Total: 8 devices (6 with backup enabled)

Reading this output:

• Key: org — the device uses the organization-level encryption key for its backups.
• Key: device — the device uses a device-specific encryption key (set via ndcli backup encryption-key set --device <name>).
• fw-branch-austin shows FAILED — backups are enabled but the last attempt failed, likely due to a connectivity issue (this device also shows as NOT SYNCED).
• fw-guest-lobby and fw-lab-bench have backups Disabled — the guest firewall is excluded intentionally, and the lab device is still PENDING so backups don’t apply.

Backup schedule states

A device’s backup status reflects both its per-device toggle and the organization-level schedule attachment:

State	Meaning
Enabled / Scheduled	The device is opted in and the org config has a named schedule attached. Backups will run automatically.
Enabled / Not scheduled	The device is opted in but no schedule is attached to the org config. Backups will not run until a schedule is set.
Disabled	The device is opted out. No backups run regardless of the schedule state.

To attach or change the schedule:

ndcli backup config set --schedule nightly-maintenance

To view and manage schedules: Schedules.
To see the recurring backup task: Scheduled Tasks.
